3-PC Stainless Steel Ball Valve Full Port 2000WOG(PN138) ISO-Direct Mount Pad
- Material:
- Stainless Steel
- Connection Form:
- Thread
- Driving Mode:
- Manual
- Nominal Pressure:
- 2000WOG
- Channel:
- Straight Through Type
- Structure:
- Floating Ball Valve

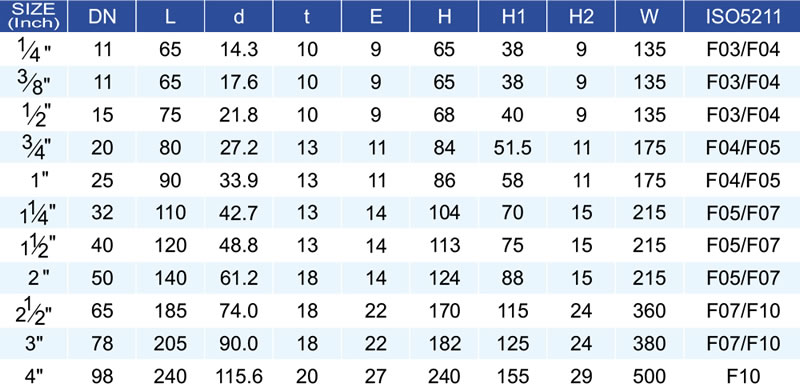

- Size:
- 1/4"~4"
FEATURES:
- Blow-out Proof Stem
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- ISO 5211 Direct Mounting Pad for Easy Automation
- Various Thread Standard Available
- Locking Device Available
STANDARD:
- Design:ASME B16.34
- Wall Thickness :EN12516-1,ASME B16.34
- Pipe Thread :ASME B 1.20.1,BS 21/2779 ,DIN 259/2999,ISO 228-1 ,JIS B0203 ISO 7/1
- Socter Weld :ASME B16.11
- Inspection&Testing :API 598,EN 12266

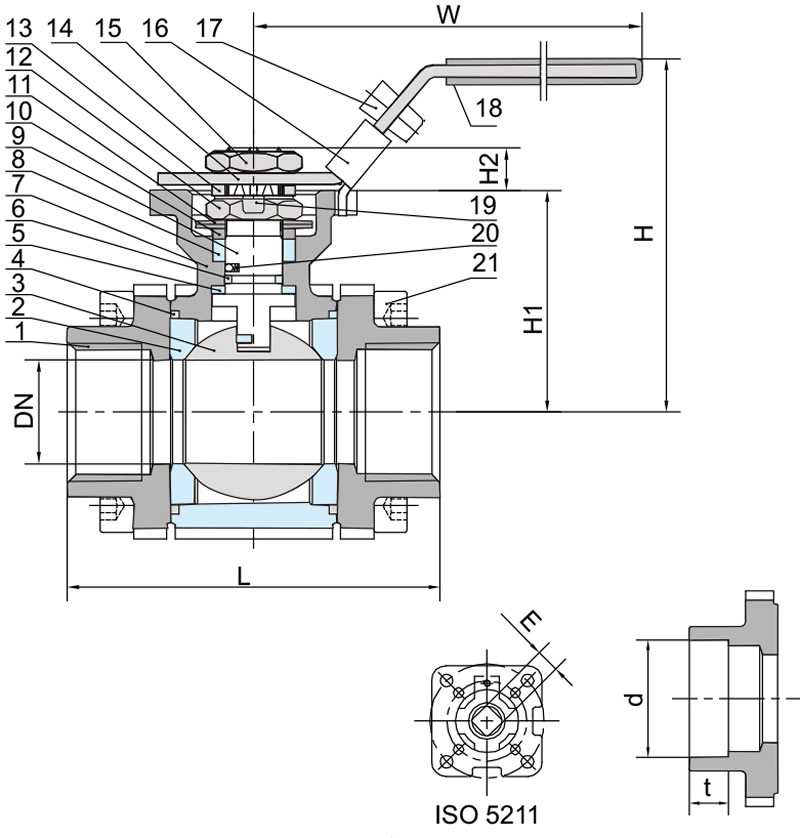

| Body | CF8/CF8M |
| Seat | RPTFE |
| Ball | SS304/SS316 |
| Stem | SS304/SS316 |
| Stem Gasket | PTFE |
| Packing | PTFE |
| Packing Gland | SS304 |
| Handle | SS304 |
| Handle Sleeve | PLASTIC |
| Handle Lock | SS304 |
| Pin | PLASTIC |
| Thrust Washer | SS304 |
| Nut | SS304 |
| End Cap | CF8/CF8M |
| Gasket | PTFE |
| O-Ring | Viton |
| Butterfly Spring | SS304 |
| Stem Nut | SS304 |
| Anti-static Device | SS304 |
| Inside Hexagonal | SS304 |
