3-Way Stainless Steel Ball Valve Reduce Port, 1000WOG(PN69)ISO-Mount Pad
- Material:
- Stainless Steel
- Connection Form:
- Thread
- Driving Mode:
- Manual
- Nominal Pressure:
- 1000WOG
- Channel:
- T Type & L Type
- Structure:
- Floating Ball Valve
- Size:
- 1/4"~2"
FEATURES:
- Blow-out Proof Stem
- Anti-Ataic Device for Ball-Stem-Body
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- ISO 5211 Mounting Pad for Easy Automation

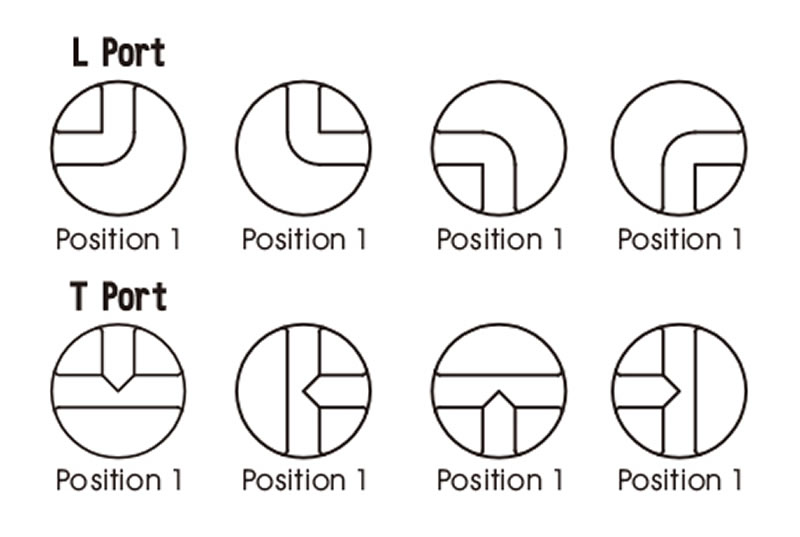

- L-Port,T-Port Available
STANDARD:
- Design: ASME B16.34
- Wall Thickness: ASME B16.34 ,GB12224
- Pipe Thread: ANSI B 1.20.1,BS 21/2779 DIN 259/2999,IS0 228-1
- Inspection& Testing: API 598

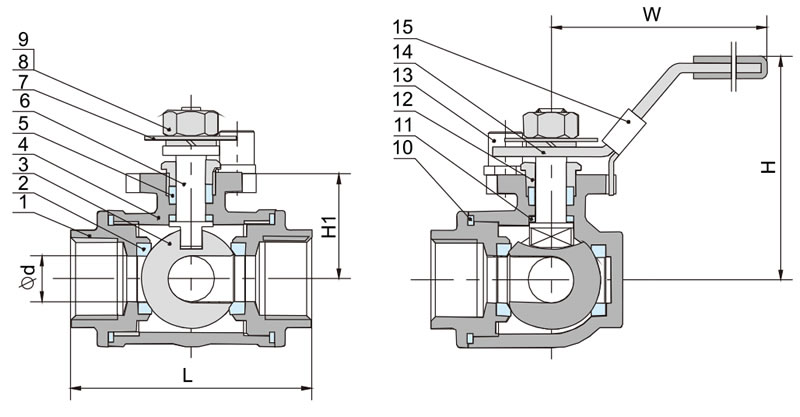

| Body | CF8/CF8M |
| Seat | PTFE+15%FV |
| Ball | SS304/SS316 |
| Stem | SS304 |
| Stem Gasket | PTFE |
| Packing | PTFE |
| Packing Gland | SS304 |
| Handle | SS304 |
| Handle Lock | SS304 |
| Thrust Washer | SS304 |
| Nut | ASTM A194 B8 |
| End Cap | CF8/CF8M |
| Gasket | PTFE |
| Stop Pin | SS304 |
| Name Plate | SS304 |
