3-Way Stainless Steel Ball Valve Full Port,Clamp ENd,1000WOG, ISO5211-Direct Mount Pad
- Material:
- Stainless Steel
- Connection Form:
- Clamp
- Driving Mode:
- Manual
- Nominal Pressure:
- 1000WOG

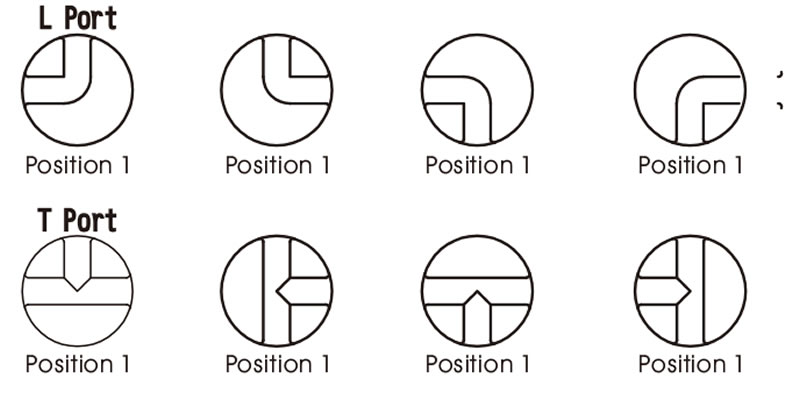

- Channel:
- T Type & L Type
- Structure:
- Floating Ball Valve

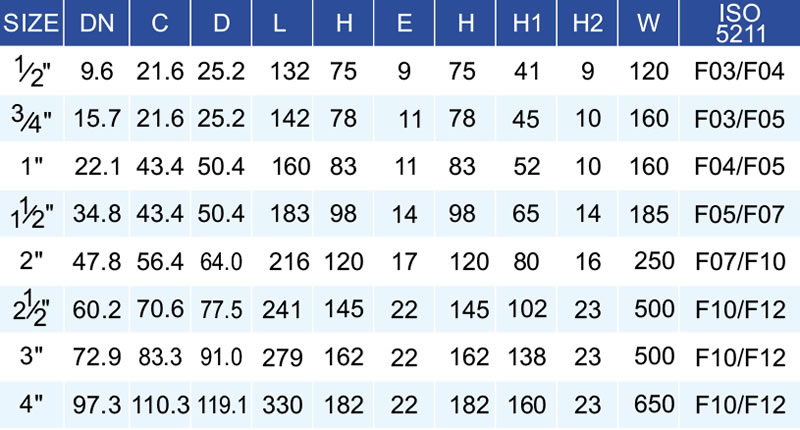

- Size:
- 1/2"~4"
FEATURES:
- Blow-out Proof Stem
- Anti-Ataic Device for Ball-Stem-Body
- Investment Casting Body
- Pressure Balance Hole in Ball Slot
- ISO 5211 Direct Mounting Pad for Easy Automation
- Locking Device Available
STANDARD:
- Design: ASME B16.34 ,API 608
- Wall Thickness: ASME B16.34, EN12516-3
- Clamp Ends: ISO 2852 SMS
- Inspection&Testing:API598,EN12266

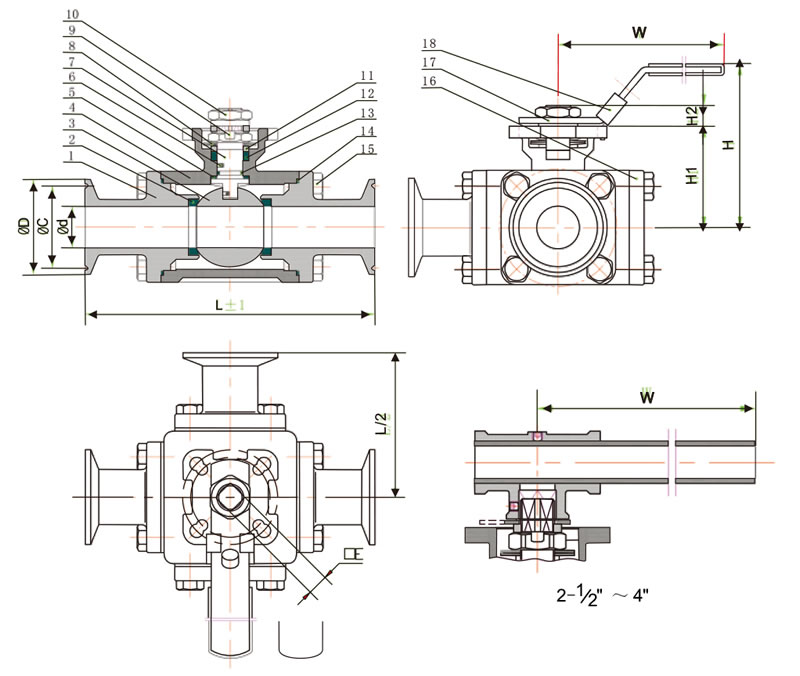

| Body | CF8/CF8M |
| Seat | RPTFE |
| Ball | SS304/SS316 |
| Stem | SS304/SS316 |
| Stem Gasket | PTFE |
| Packing | PTFE |
| Packing Gland | SS304 |
| Handle | SS304 |
| Handle Lock | SS304 |
| Thrust Washer | SS304 |
| End Cap | CF8/CF8M |
| O-Ring | Viton |
| Butterfly Spring | PH15-7Mo |
| Stem Nut | SS304 |
| Anti-static Device | SS304 |
| Hex Bolt | SS304 |
| Cap Gasket | PTFE |
